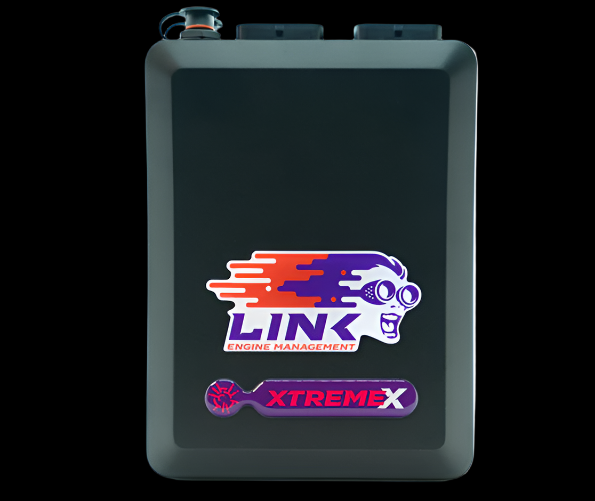

Link G4X XtremeX

The XtremeX is one of Link’s premium ECU’s with more inputs, outputs and features.

The XtremeX has built in E-throttle and all the advanced features including Anti-lag, Cruise Control and Traction Control. With 8 Injector drives and 8 ignition drives the XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark. The XtremeX is a great choice for professional level motorsport or more demanding road car applications.

In the Box:

• G4X XtremeX ECU
• Wiring and Installation Instructions
• 2 large Link Stickers
• 2 small Link Stickers
• USB Tuning Cable
• Mounting Bracket
• Requires A and B Looms

Inputs/Outputs

• 8 x High Current Injector Drives (suits high impedance injectors)
• 8 x Ignition Channels
• 8 x Auxiliary Outputs (All PWM capable). Aux5-8 can control Stepper Motors and drive High or Low
• 8/10* x Digital Inputs (all capable of reading frequencies up to 10kHz). *2 inputs required when using 2nd CAN Bus.
• +5V Out
• +8V Out
• 4 Temperature Inputs (Configurable pull-ups on ANT1&2)
• 11 x 0-5V Analogue Inputs
• 2 x Trigger Inputs (Reluctor, Optical or Hall Sensors)
• On Board Baro
• 3 Axis Accelerometer

Communications

• 2* x CAN bus
• 1x Serial (RS232) connection
• 1x USB tuning connection
• Faster communications than G4+ models
• 512 Megabytes Data Logging

Physical

• Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
• Mass: 680grams
