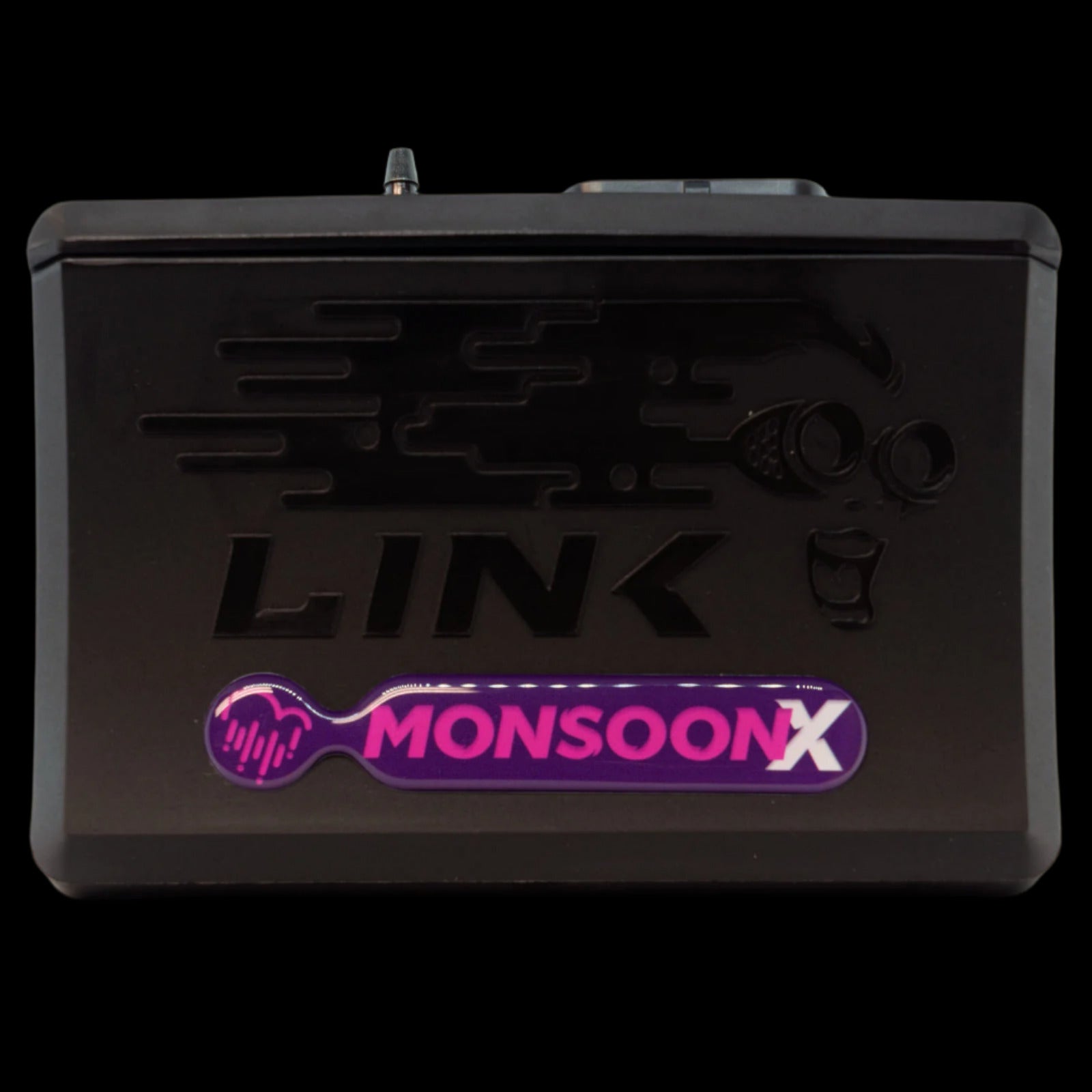

Link G4X MonsoonX ECU

More features, more powerful.

The MonsoonX has been upgraded to provide 512 megabytes of data logging, meaning you can log much more data at a faster sample rate. Control loops are also more precise compared to its G4+ predecessor, along with advancements such as single precision floating point format fuel tables, better resolution within ignition timing and faster communications. These upgrades make the MonsoonX a true powerhouse in a small shell.

MonsoonX features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.

With the MonsoonX you have all the tuning capabilities of the AtomX, but you can also choose to run some of the following features: Launch Control, Anti-lag, VVT Control and Closed Loop Boost Control. It also comes with a built in 4 bar or 7 bar MAP sensor further reducing installation cost. Now featuring Knock Control.

Note: The MonsoonX will run any of the above features, but it cannot run them all at once. The number of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs.

The MonsoonX will control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire. This makes it ideal for naturally aspirated or turbocharged engines that just need a retune and one or two extra features, so you don’t need to jump up to one of our higher-level ECUs.

In the Box:

• G4X MonsoonX ECU
• Wiring and Installation Instructions
• USB Tuning Cable
• 2 Large Link Stickers
• 2 Small Link Stickers
• Mounting Bracket
• Requires A Loom

Inputs/Outputs

• 4 Saturated Injector Drives (suits high impedance injectors)
• 4 Ignition Channels
• 6 Auxiliary Outputs
• 4 Digital Inputs
• +5V Out
• 2 Temperature Inputs
• 4 0-5V Analog Inputs
• 2 Trigger Inputs (Reluctor, Optical or Hall Sensors)
• On Board Baro Correction (Real Time)
• On Board 4Bar MAP Sensor

Communications

• 1 x CAN bus
• 1 x USB tuning connection

Physical

• Length: 79 mm
• Width: 126 mm
• Height: 42 mm
• Weight: 360 grams
